1)對國際標準DMX512信號實現實時傳輸;

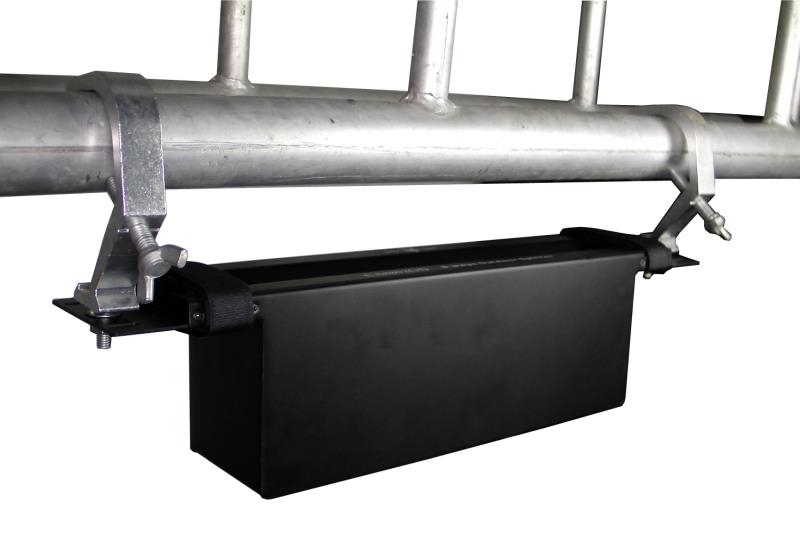

2)IP65防護等級,防雨淋結構設計,可懸掛安裝在戶外使用;
3)供電AC220V/50Hz或AC110V/60Hz,可通過電源選擇開關進行切換;

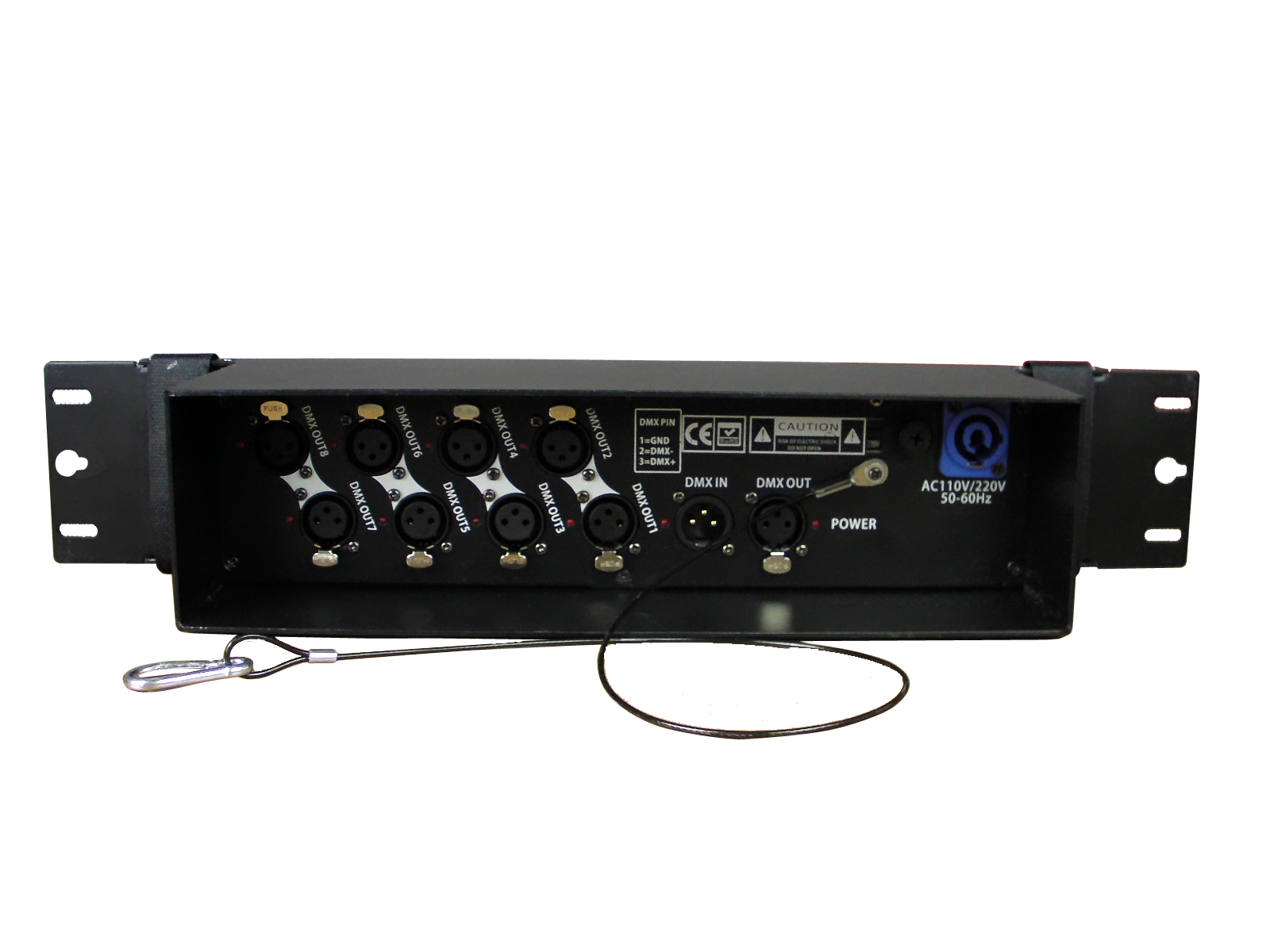

4)能將輸入的DMX512信號分配成8路輸出,對輸出信號進行整形放大處理;
5)每路輸出使用一組獨立的供電電源(采用變壓器供電),和獨立的光電隔離器進行隔離,以上措施有效就增強了產品的抗干擾能力,避免了各端口之間電路的相互影響;
6)每個外部接口都增加了保護電路;

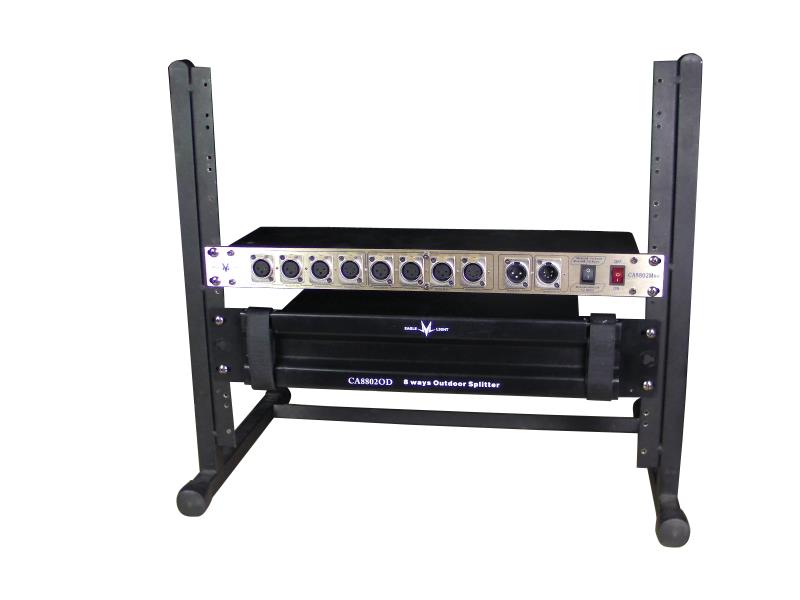

7)安裝結構: 采用標準19寸2U機柜結構,可實現多種安裝方式,方便快捷;
8)尺寸: 48*11.7*8.6cm ,重量: 2.8kg
8)尺寸: 48*11.7*8.6cm ,重量: 2.8kg
1) Realizing the transmission of DMX512 signal
2) It can hung on truss outdoor with waterproof structure design and IP65 waterproof level
3) Can through electricity switch to change the power supply AC220V/50Hz or AC110V/60Hz
4) It can distribute input DMX512 signal into 8 ways output and amplify the output signal
5) Every input and output all has independent power supply(Adopt transformer to supply electricity)with isolator in input and output signal to strength anti-jamming ability effectly and avoid the inference of each port
6) Add protect circuit to every external interface
7) Installation: Standard cabinet: 19 inches 2U. It can achieve several methods of installation,fast ad convenient.
8) Size: 48*11.7*8.6cm Weight: 2.8kg
