◆一進六路輸出;它的輸出電路都采用模塊式設計,您可以像搭積木似的,將3芯與5輸出模塊進行任意搭配,組合成您想要的形式,使用起來更加快捷方便;
◆當輸出模塊受到外部大電流沖擊造成損壞”時現場更換處理及其方便,使用自帶的子母貼捆綁式安裝在燈架上,因此為現場應用又增加了一層安全防護措施;
◆輸入與輸出采用獨立的電源供電,每個接口都有獨立的保護電路和光電隔離措施,實現了信號與電氣上的完全隔離;
◆銀色金屬3芯或5芯卡儂座更結實耐用。
◆尺寸; 0.86KG 11.5*17CM
具備雙向DMX512-RDM協議功能,燈具信息可反饋到MA控臺等具備RDM功能的燈光控臺上。
RDM8802Mod是一款全新的精品型DMX512-RDM雙向通信協議信號分配器產品,它能夠將DMX512-RDM數據信號進行整形放大后分配成4路或8路DMX512-RDM信號輸出,并且各輸入輸出接口供電獨立,采用高壓隔離技術。
◆8路經電氣隔離的信號分配輸出;每路都有信號指示燈;
◆1路信號輸入,8路直通信號輸出(信號輸入與直通信號之間有經電氣隔離)
◆增強數據總線接入設備數量的能力。保護燈光控制臺DMX512輸出接口,故障現場隔離,提高數字式燈光控制系統的安全運行可靠性。
◆具備雙向DMX512-RDM協議功能,燈具信息可反饋到MA控臺等具備RDM功能的燈光控臺上。
◆供電電源:AC90V-240V 50HZ/60HZ
◆凈重:1.8KG
◆毛重:2.2KG
◆體積:19”1U,530*180*100mm
◆ Output 8chs DMX signal after the electrical isolation with signal indicator light in every way
◆Shape and amplify signal, extend the distance of signal transmission
◆ 1ch signal input and 8ch direct signal output
◆It can increase the device number of data bus、 protect DMX512 output port of controller and improve the safety and stability of digital light control system
◆Possess two-way DMX512-RDM protocol function. Can feedback the light data to MA and other RDM light controller ◆Voltage:AC90V-240V 50HZ/60HZ
◆N.W:1.8KG
◆G.W:2.2KG
◆Size:19”1U,53.5*18.5*10CM

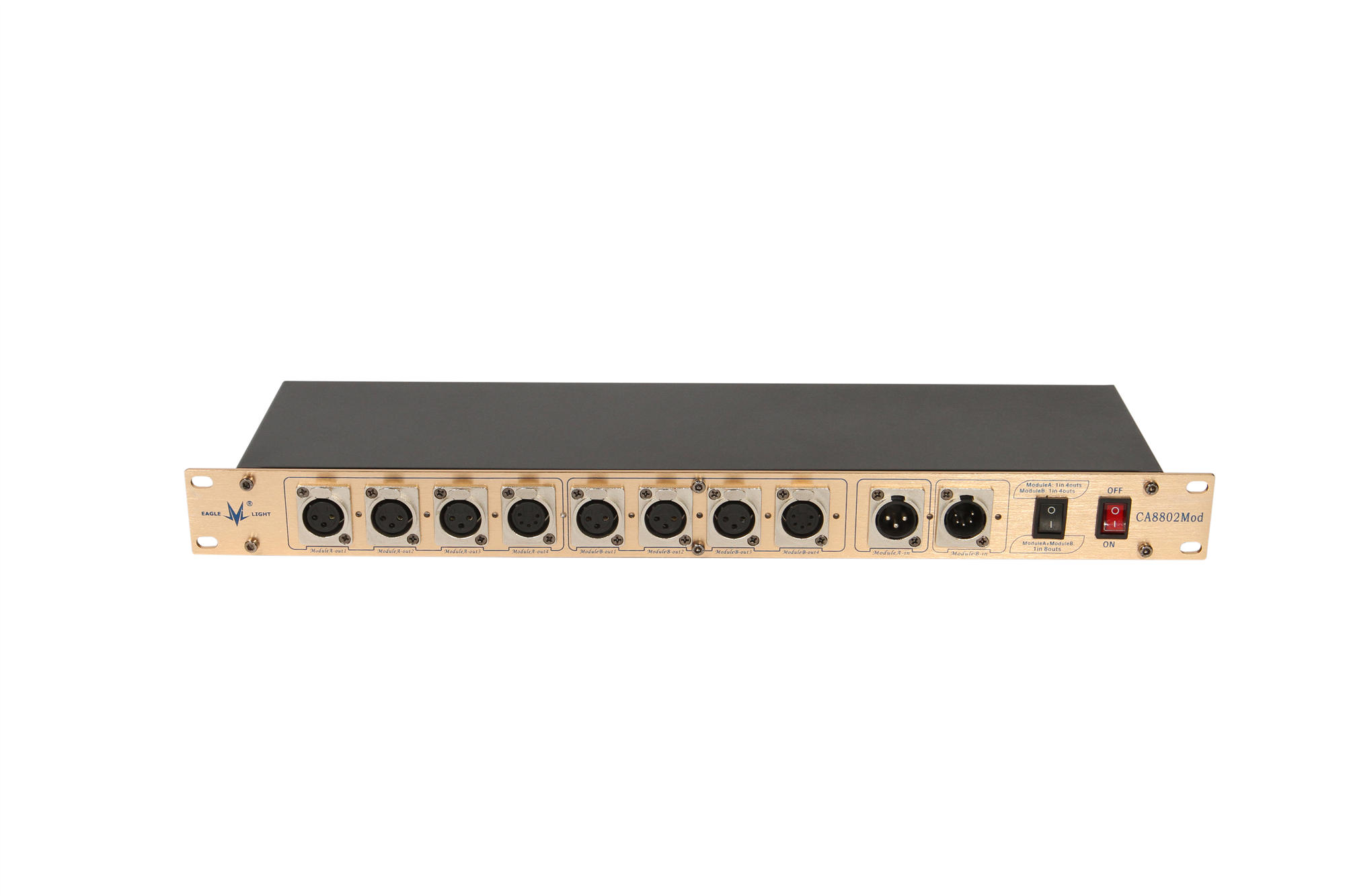

CA8802Mod是一款全新的精品型DMX512信號分配器產品,她能夠將DMX512數據信號進行整形放大后分配成4路或8路DMX512 信號輸出,并且各輸入輸出接口供電獨立,采用高壓隔離技術。適用于DMX512信號遠距離傳輸及擴展使用燈具數量的場合,及需要各信號端口之間完全電氣隔離的使用場合。
CA8802Mod is a newest DMX Splitter, which can shape and amplify the signal output in 4ways or 8 ways, and each input and output has separately electricity supply with high voltage isolation technology .The products can be used for the situation like long distance transmission and extending the quantity of the lighting in the live show and the electrical isolation between each port.
