◆一進六路輸出;它的輸出電路都采用模塊式設計,您可以像搭積木似的,將3芯與5輸出模塊進行任意搭配,組合成您想要的形式,使用起來更加快捷方便;
◆當輸出模塊受到外部大電流沖擊造成損壞”時現場更換處理及其方便,使用自帶的子母貼捆綁式安裝在燈架上,因此為現場應用又增加了一層安全防護措施;
◆輸入與輸出采用獨立的電源供電,每個接口都有獨立的保護電路和光電隔離措施,實現了信號與電氣上的完全隔離;
◆銀色金屬3芯或5芯卡儂座更結實耐用。
◆尺寸; 0.86KG 11.5*17CM
具備雙向DMX512-RDM協議功能,燈具信息可反饋到MA控臺等具備RDM功能的燈光控臺上。
RDM8802Mod是一款全新的精品型DMX512-RDM雙向通信協議信號分配器產品,它能夠將DMX512-RDM數據信號進行整形放大后分配成4路或8路DMX512-RDM信號輸出,并且各輸入輸出接口供電獨立,采用高壓隔離技術。
◆8路經電氣隔離的信號分配輸出;每路都有信號指示燈;
◆1路信號輸入,8路直通信號輸出(信號輸入與直通信號之間有經電氣隔離)
◆增強數據總線接入設備數量的能力。保護燈光控制臺DMX512輸出接口,故障現場隔離,提高數字式燈光控制系統的安全運行可靠性。
◆具備雙向DMX512-RDM協議功能,燈具信息可反饋到MA控臺等具備RDM功能的燈光控臺上。
◆供電電源:AC90V-240V 50HZ/60HZ
◆凈重:1.8KG
◆毛重:2.2KG
◆體積:19”1U,530*180*100mm
◆ Output 8chs DMX signal after the electrical isolation with signal indicator light in every way
◆Shape and amplify signal, extend the distance of signal transmission
◆ 1ch signal input and 8ch direct signal output
◆It can increase the device number of data bus、 protect DMX512 output port of controller and improve the safety and stability of digital light control system
◆Possess two-way DMX512-RDM protocol function. Can feedback the light data to MA and other RDM light controller ◆Voltage:AC90V-240V 50HZ/60HZ
◆N.W:1.8KG
◆G.W:2.2KG
◆Size:19”1U,53.5*18.5*10CM

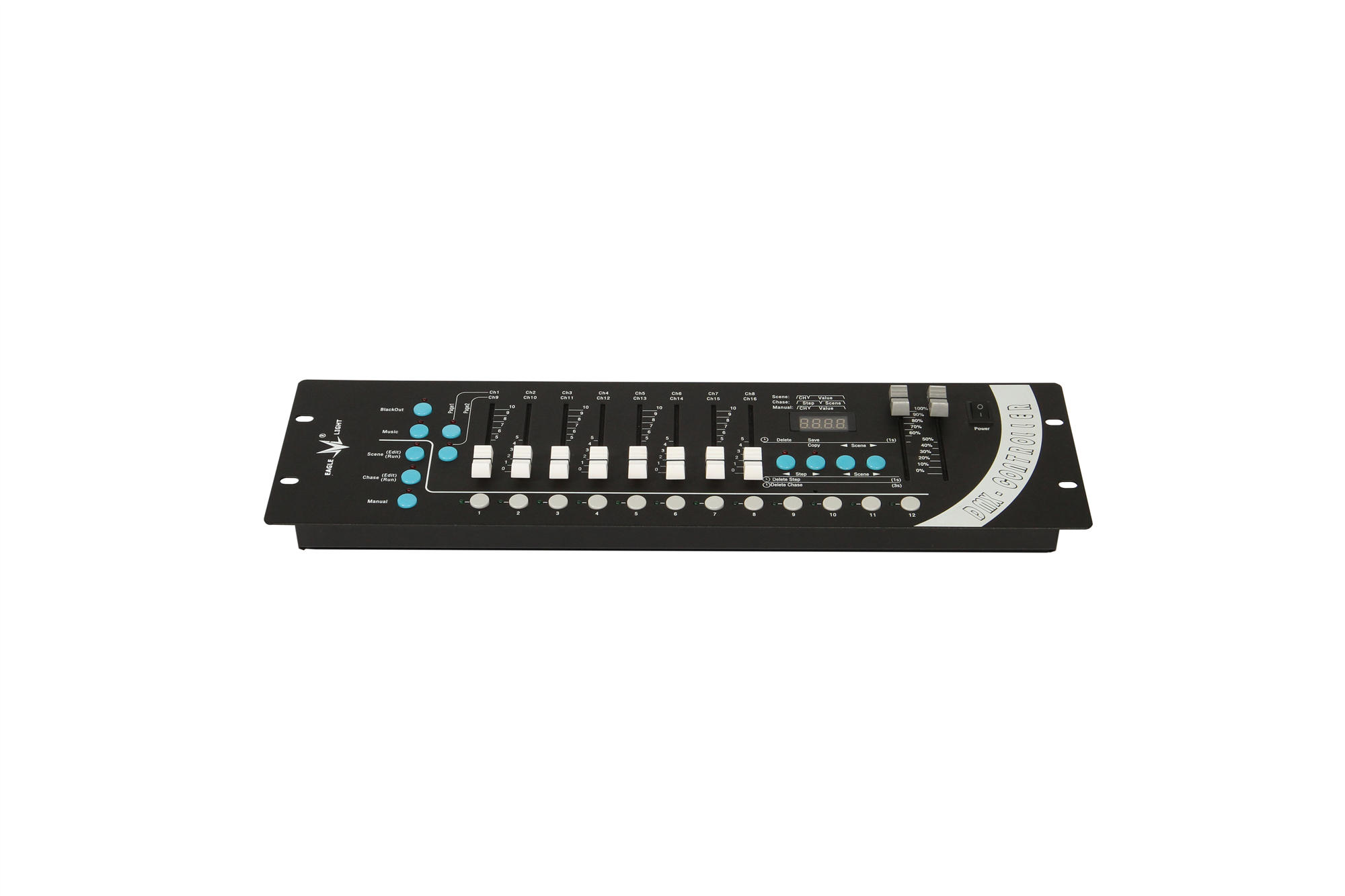

◆192個通道;性能更加穩定;控燈不延遲和不抖動;
◆可以復制資料到另外一臺CR002P,或者CR003P;
◆可以獨立控制燈具運行已保存的場景和程序;
◆保存需要重復運行的場景后,重啟電源,將自動運行-無人管理功能;
◆開關電源,適用于所有品字電源插使用更加方便;
◆12個場景和程序,每個程序可存100個單步場景。
◆192Channels; Stable performance; Controlling lamp without delay and tremble.
◆You can copy data from this CR002P to another one or CR003P.
◆It can control already preserved scenes and programmings independently.
◆After preserving the scene which need to running repeatedly, power on again,it will automatically start unmanned management function. ◆Switching power supply, suitable for all ‘Pinzi’ power plug, is more convenient to use.
◆With 12 scenes and programmings, each one can save 100 single step scene
